3-axis milling
For pockets, planar faces and accessible contours.

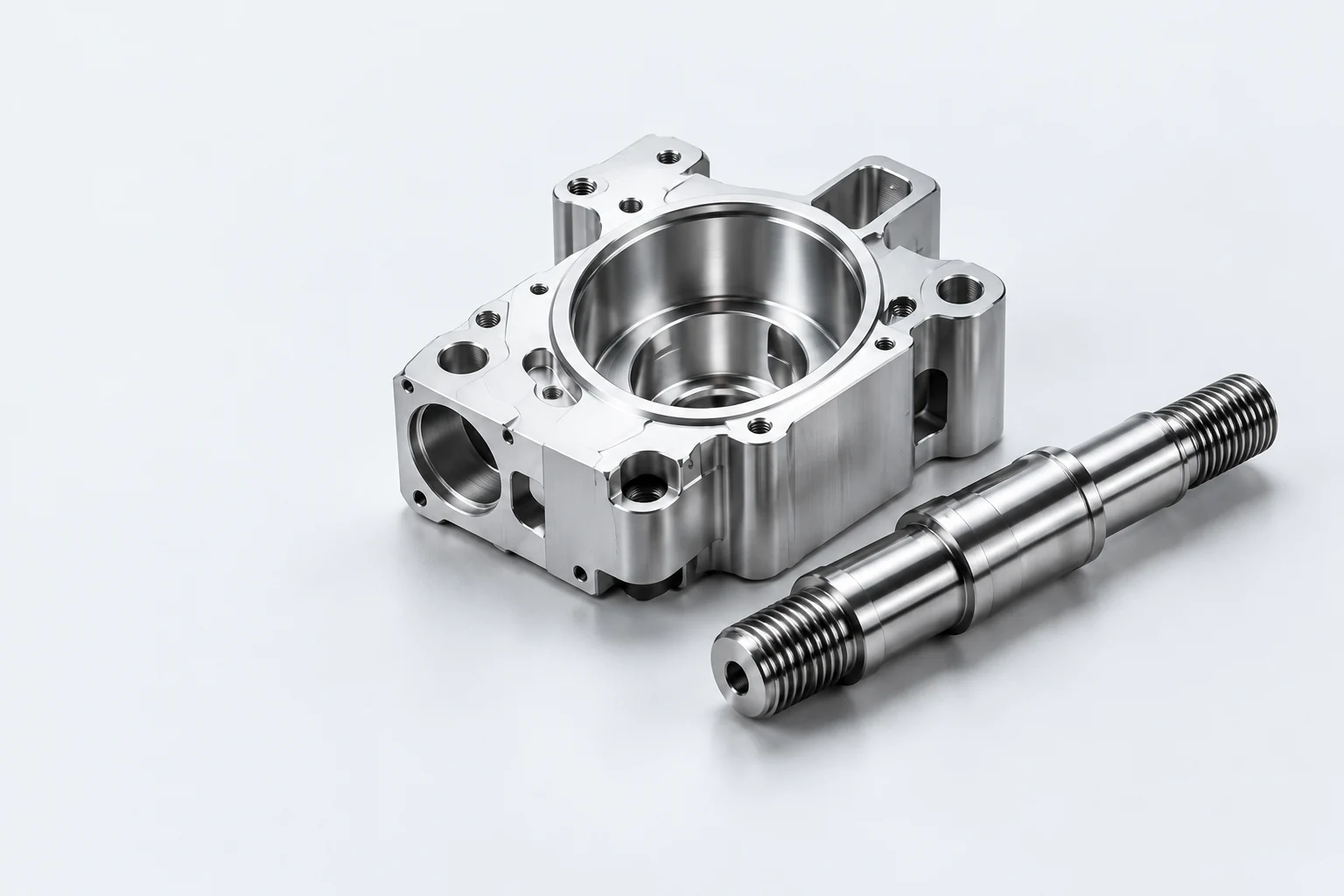

PRECISION CNC MACHINING
CNC machining.
From geometry to a
defined result.
Turn your design into a clearly defined manufacturing scope, with the process, material, finish and inspection reviewed together.
Review your CNC project
CAPABILITIES
Choose the machining route.
Different geometries call for different processes. Select the best route for your part.
Turning
For shafts, bushings and cylindrical features.
Multi-axis
For angled features, multiple faces and complex access.
DEFINE QUALITY
Define the critical features.
Identify the features that control fit, function and assembly.
| Feature | What to review in your input | Measurement scope to agree |
|---|---|---|
| Bore | Diameter, position and surface condition | CMM / bore gauge, as applicable |
| Thread | Thread type, position and engagement | Thread gauges and visual review |
| Datum | Reference faces and feature relationships | Agreed datum system |
| Surface | Critical surfaces and finish | Agreed finish review |
| Edge | Chamfer, radius and burr requirements | Visual / profile review |
DESIGN FOR MANUFACTURING
Make difficult features visible.
Clear design intent helps define the manufacturing route.
Tool access
Identify features that need special access or setup.
Internal corners
Review tool radius and corner requirements.
Thin walls
Discuss stiffness, support and distortion risks.

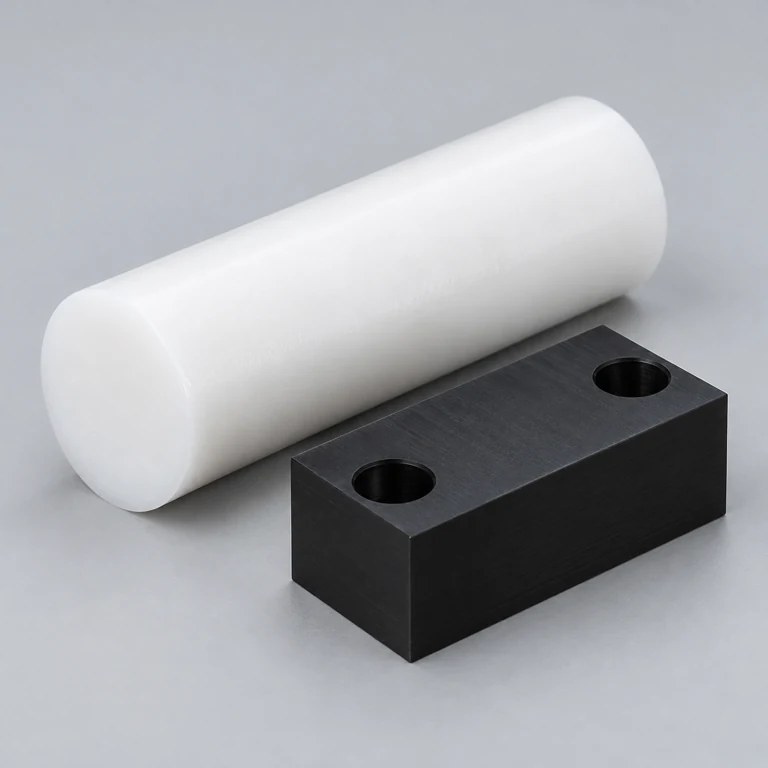

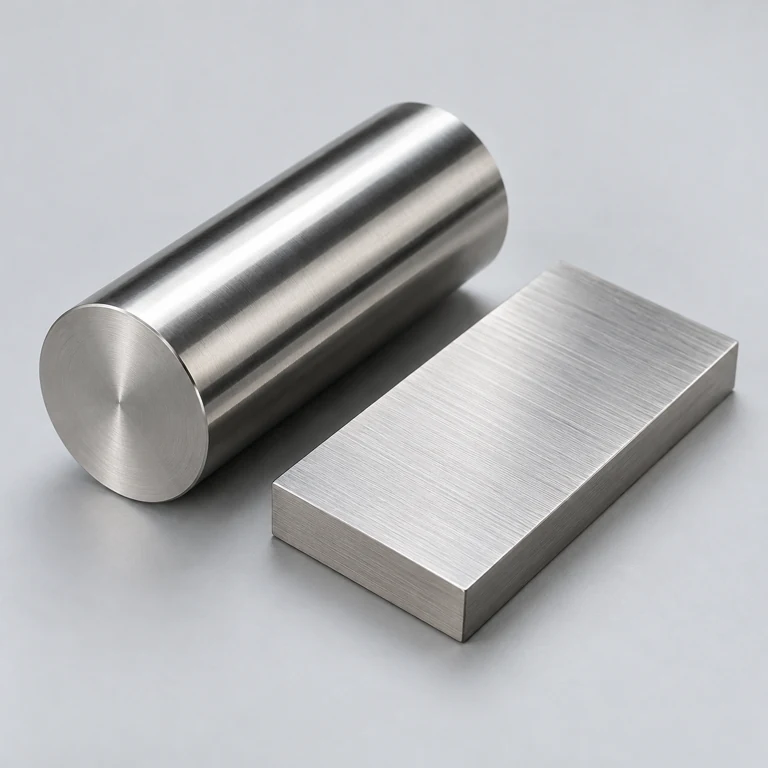

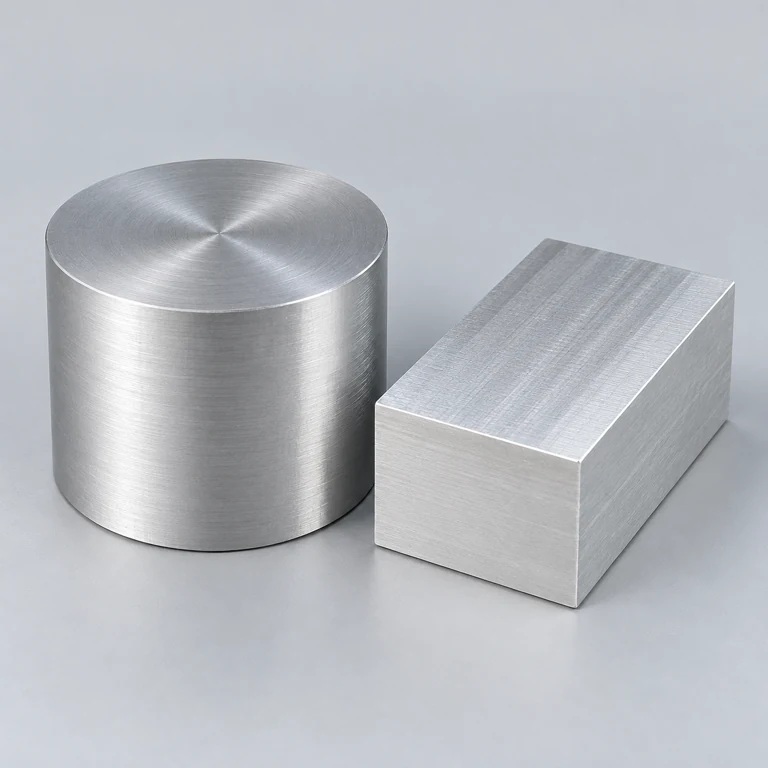

Materials for real world performance.
Choose the material for your application and environment.
METROLOGY
Inspect the features that control fit.
Agree appropriate methods and records for your drawing.
SAMPLE
Inspection review scope
| Feature | Review scope |
|---|---|
| 1 | Overall geometry |
| 2 | Ports / bores |
| 3 | Sealing surfaces |
| 4 | Threads |
CMM inspection
Review critical dimensions and positions.
Micrometer measurement
Review shaft and external dimensions.
Bore measurement
Review internal diameter and roundness.
SURFACE FINISH
Finishes for form and function.
Confirm compatibility, masking and after-finish dimensions.

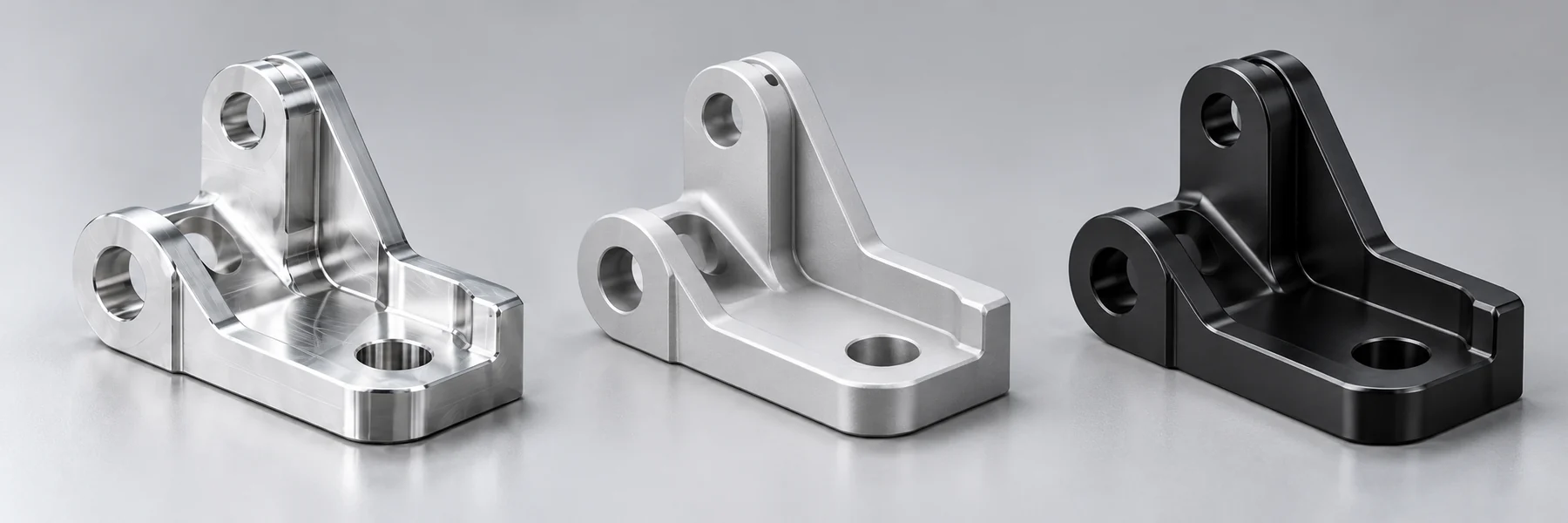

As-machined
Tool marks and the required surface condition are reviewed.
Bead-blasted
Agree texture, masking and final dimensions.
Anodized
Confirm the finish specification and mating surfaces.
PACKAGING
Clean packing for a safe delivery.
Define how surfaces, identifiers and records will be protected.
Protect the surfaces
Agree the contact protection and packaging needed.
Match identification
Link the part number, revision and quantity.
Include agreed records
Confirm the documents needed at handover.
Discuss your CNC machining project.
Share your drawing, material, quantity and finish requirements.
QUESTIONS BEFORE RELEASE
Clear answers. A defined next step.
What file formats can I share?
Share your current drawing and 3D model using the contact form. Identify revision, units, material and the features that control fit.
How are project requirements confirmed?
The material, process, quantity, inspection scope and release conditions are agreed for the actual part before work proceeds.
